Raymarine onboard

The full Raymarine electronics stack aboard Sophisticated Lady — what we run, why it’s there, and (soon) a verified schematic plus affiliate links for matching gear.

Intro

Raymarine is the boat’s navigation and awareness layer: chartplotting, radar, autopilot, AIS, and depth/speed sensing wired as one stack. This page will grow into a systems reference — components, purpose, wiring overview, and honest affiliate slots for gear that matches what we use.

Components

Component	Role	Status
MFD / chartplotter	Primary helm display & charting	confirm with Mateo
Radar	Weather / traffic awareness on SeaView tower	confirm with Mateo
Autopilot	Course keeping under sail / power	confirm with Mateo
AIS	Vessel identity & collision awareness	confirm with Mateo
Transducers	Depth / speed / temperature feeds	confirm with Mateo

Placeholder rows only — mark confirmed before publish.

Purpose of each

MFD / chartplotter — the glass helm: charts, overlays, and the hub for the network.
Radar — sees weather cells and traffic when eyes alone aren’t enough.
Autopilot — holds a course so the crew can handle sail, watch, or rest.
AIS — shows who’s out there and announces us.
Transducers — depth and speed into the same picture.

Copy is draft; tighten with Mateo’s model list.

System outline

As-installed Raymarine navigation system · September 2026 · Jeanneau International 50. Two-page outline: deck/accommodation placement, then network connections (RayNet via two RNS-8 switches + SeaTalk^ng).

Download PDF · tabloid landscape · Draft 4 (21 Sep 2026)

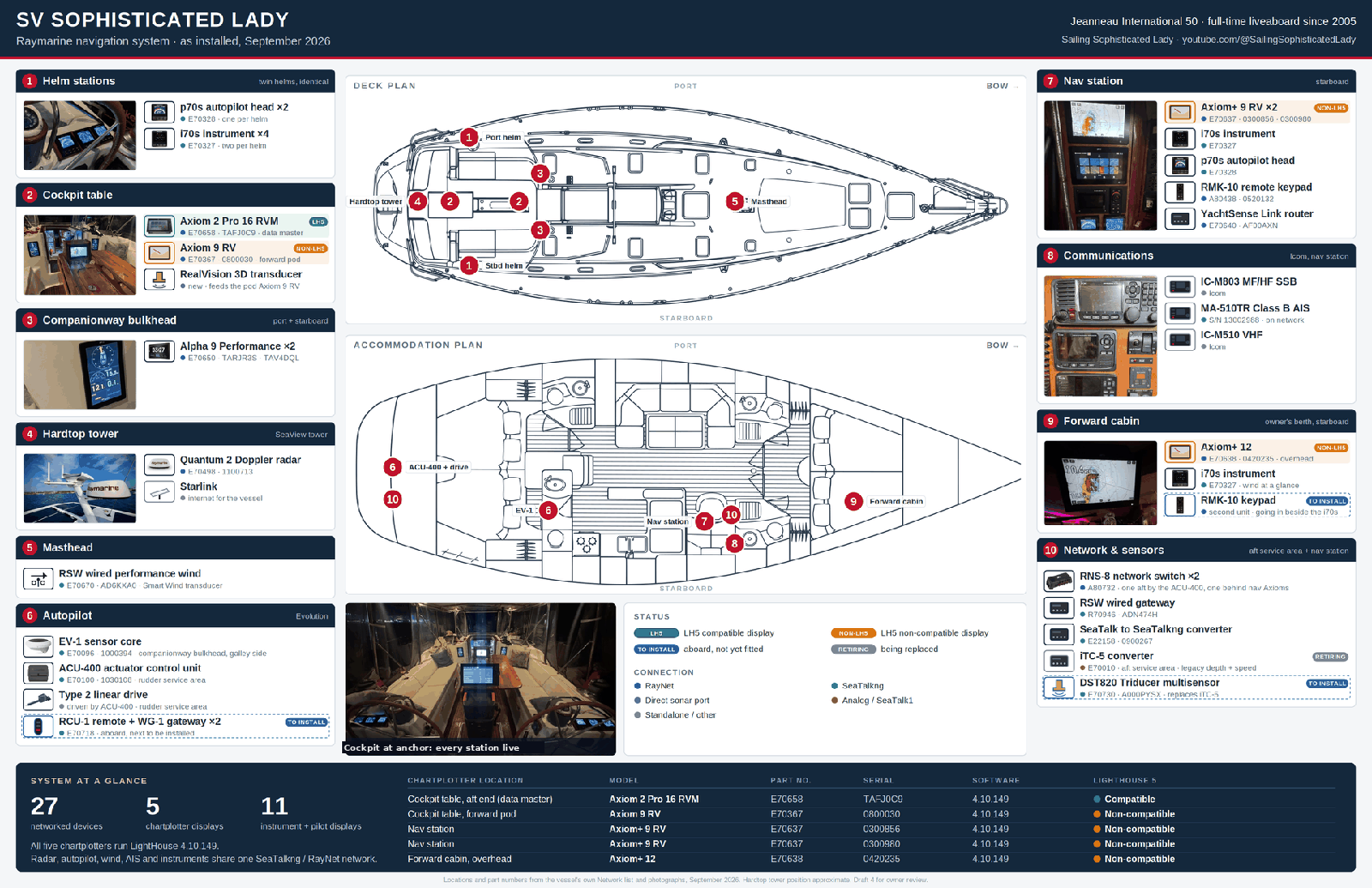

Raymarine system overview Draft 4 page 1 — deck and accommodation placement — Page 1 — deck plan + accommodation plan with gear locations.

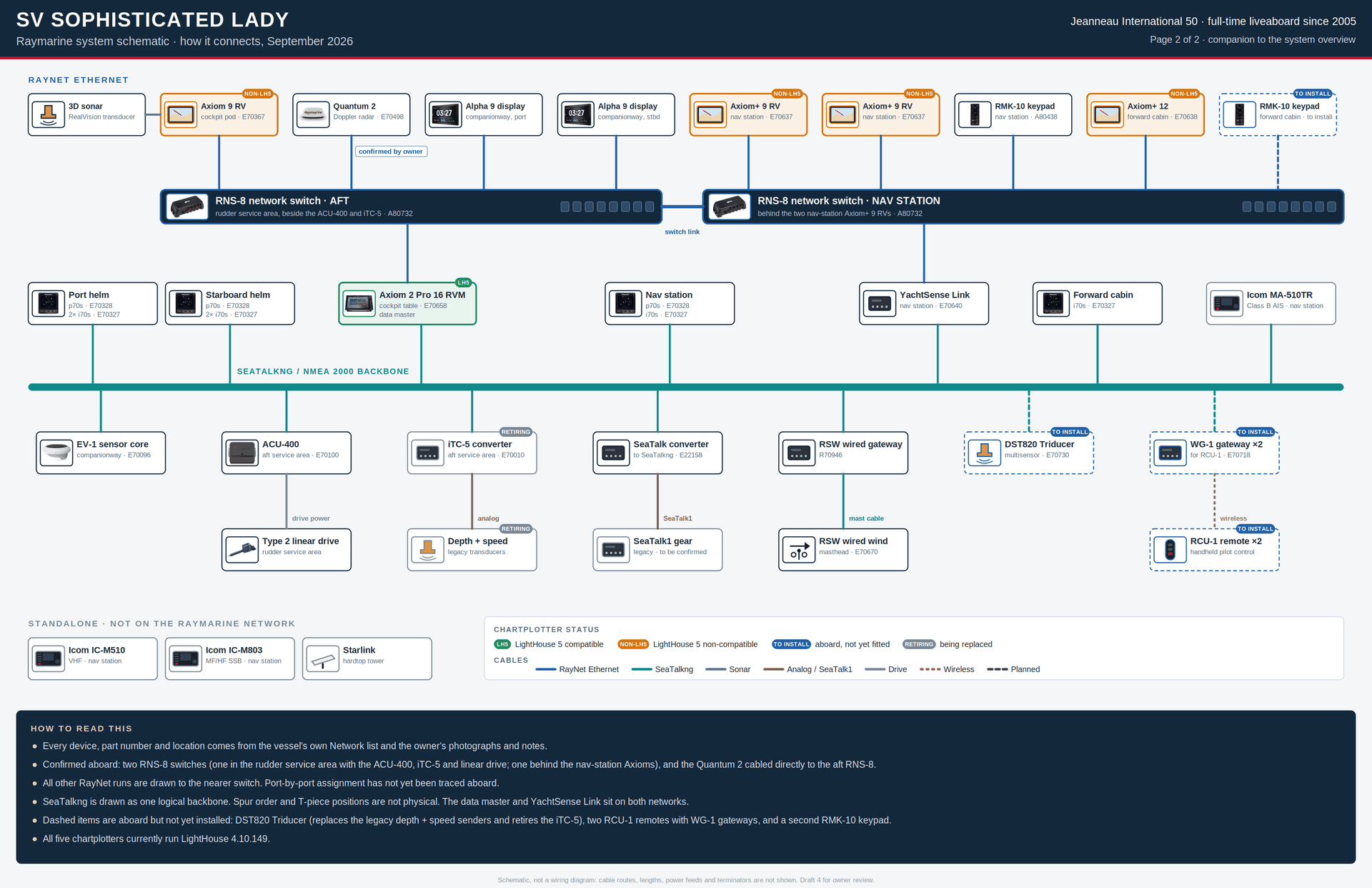

Raymarine system schematic Draft 4 page 2 — network connections — Page 2 — connection schematic (RayNet, SeaTalkng, legacy / planned).

Affiliate links

Affiliate links TBA — do not publish until filled.

Amazon slot — MFD / chartplotter matching gear — Link TBA
Amazon slot — radar / antenna accessories — Link TBA
Amazon slot — AIS / transducers — Link TBA

Photos

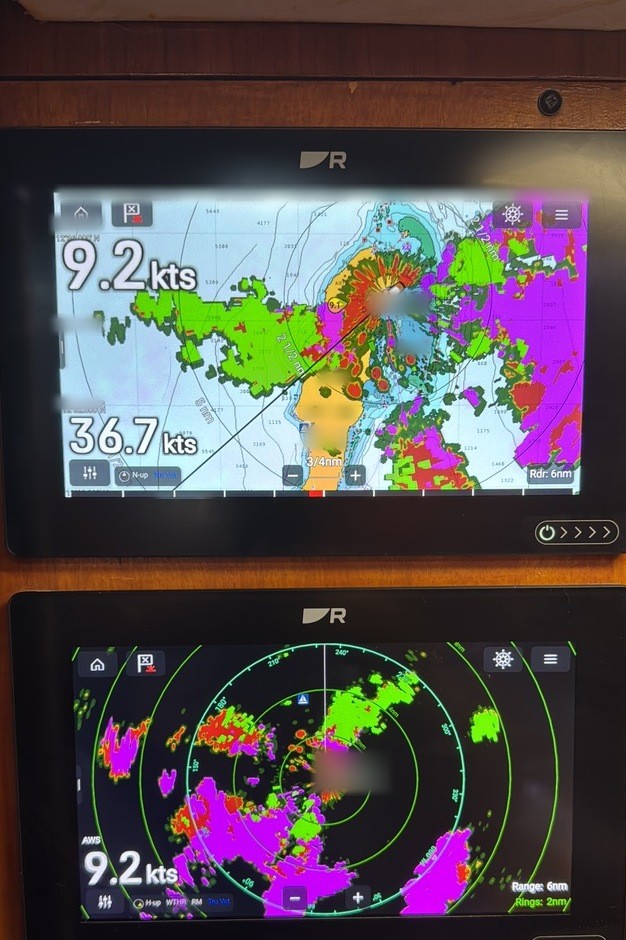

Dual Raymarine Axiom MFDs — both screens, Schenker cropped — Dual Axiom stack (both screens; Schenker cropped) — interior figure, not hub thumb.

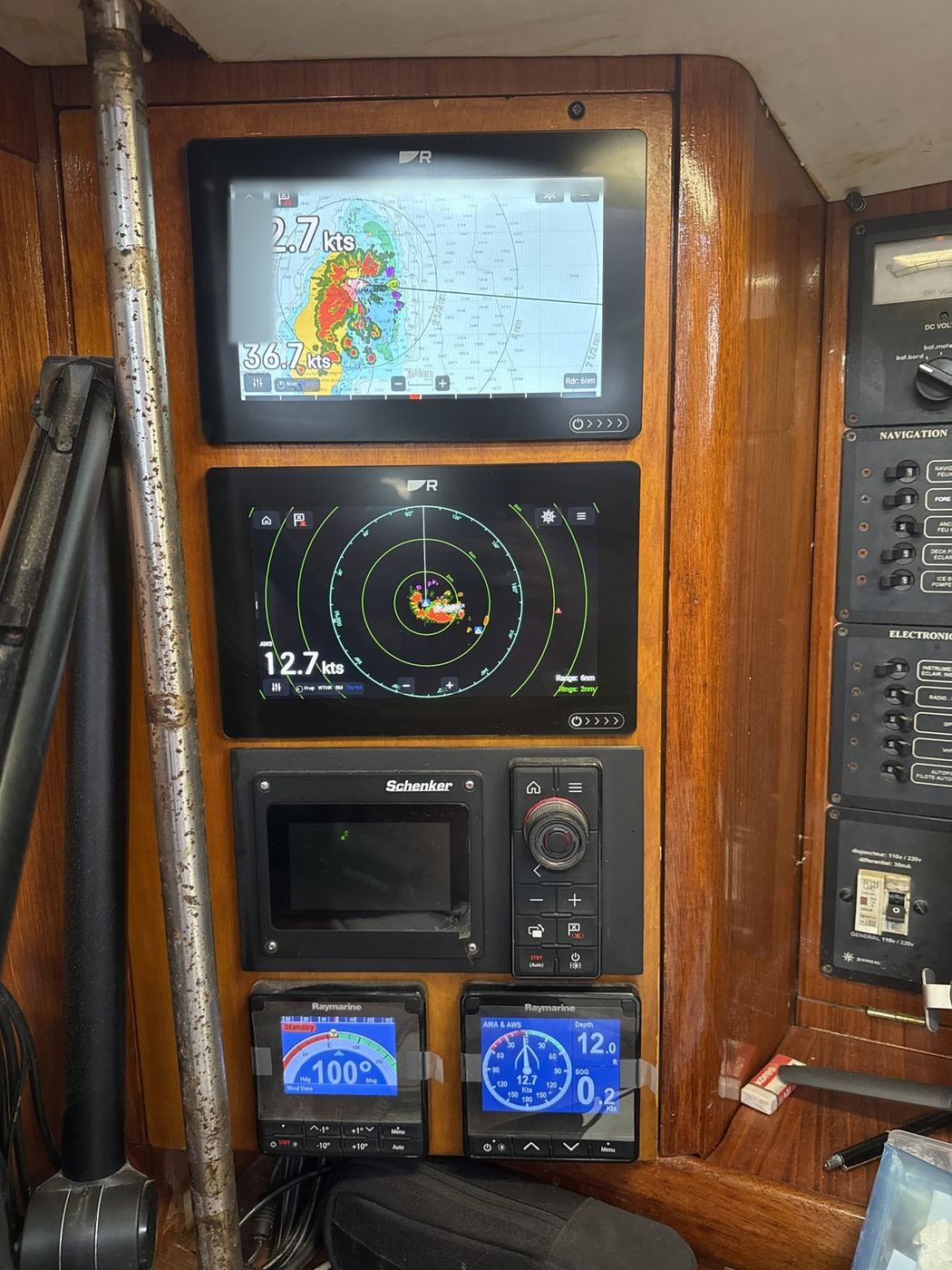

Nav station: dual Raymarine Axiom MFDs, RMK-10 keypad, and twin i70s — Rick 15 Sep 2026 — dual Axiom (chart + radar), RMK-10, twin i70s. Schenker watermaker panel left; breaker panel right.

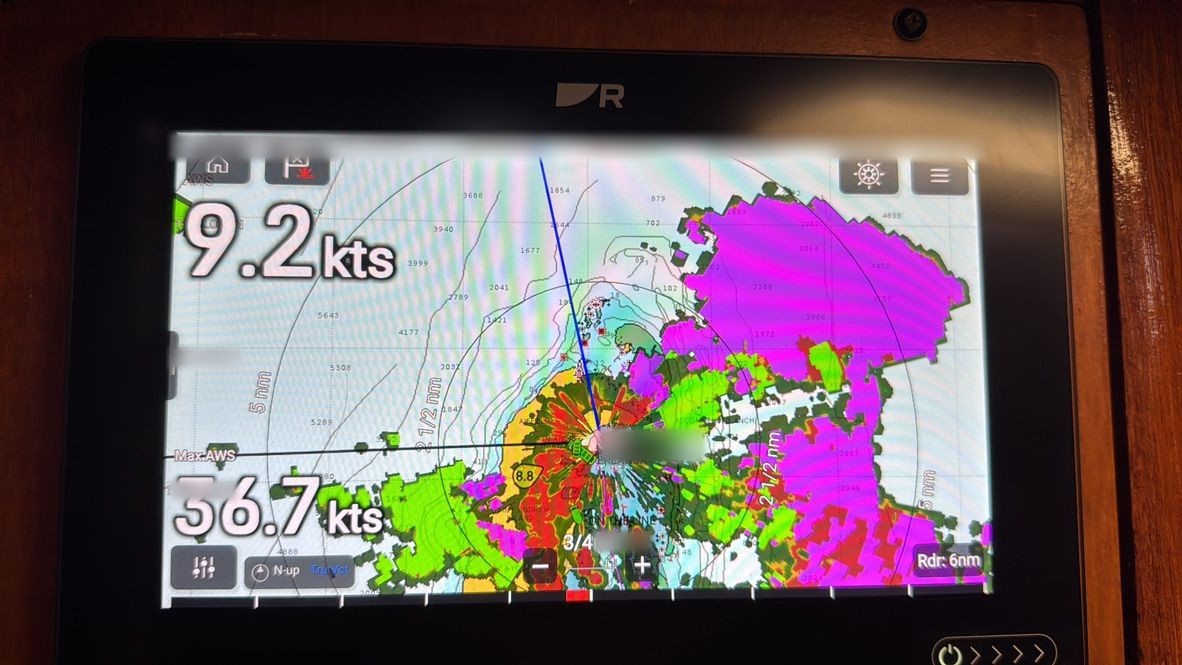

Raymarine Axiom chart and radar close-up — clean screen — Axiom chart + radar close-up — same single-screen family as hub thumb (clean, no black band).

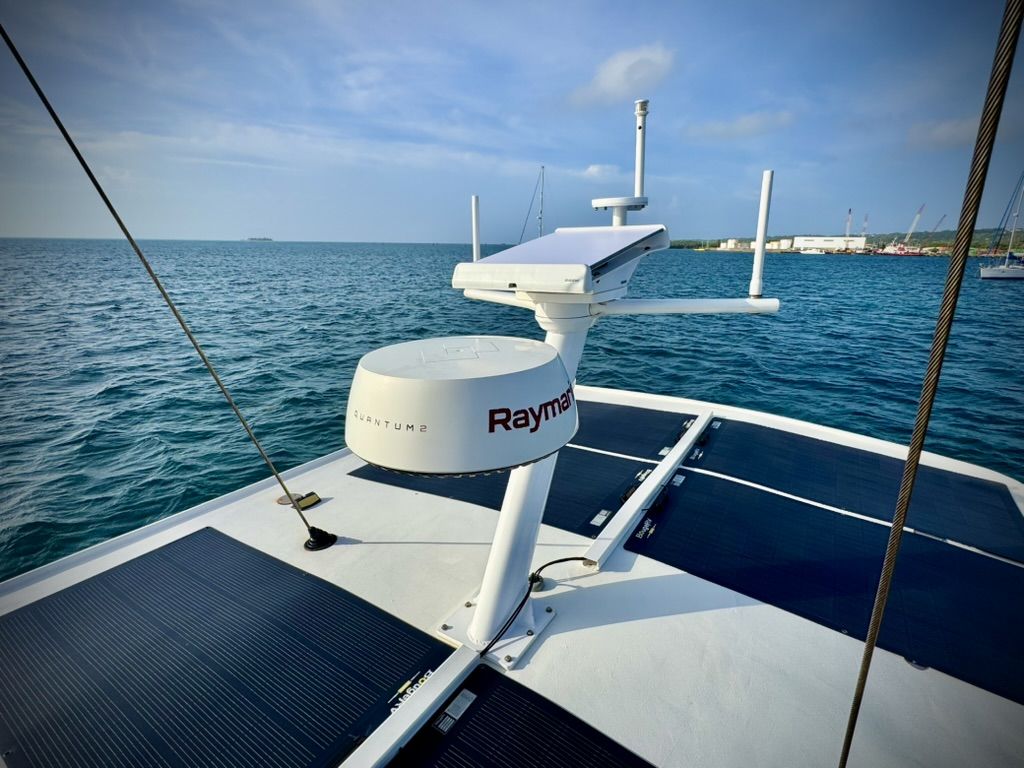

Raymarine Quantum 2 overhead on SeaView tower — Quantum 2 overhead — clearest QUANTUM 2 mark (16 Sep shoot).

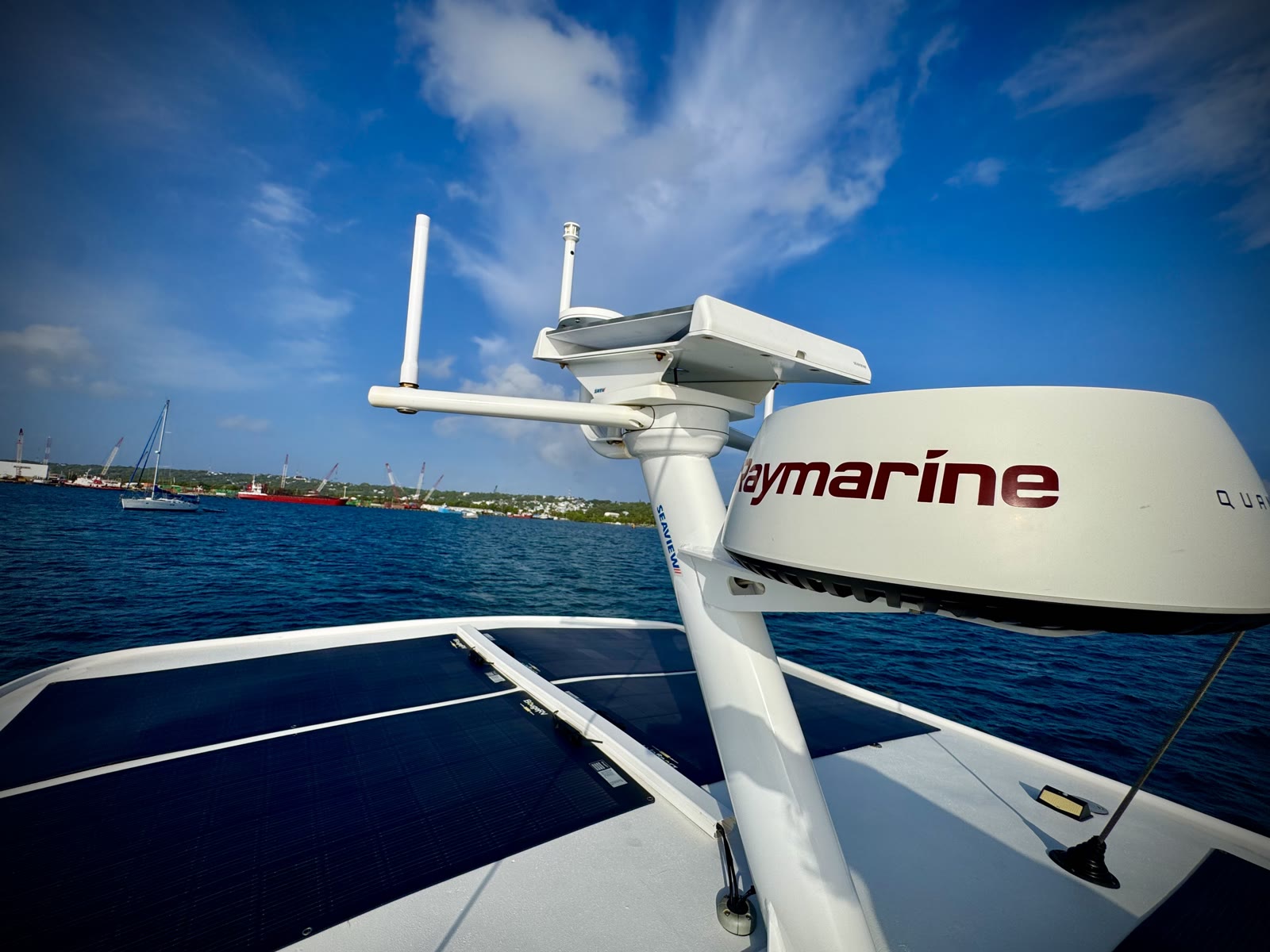

Raymarine Quantum on SeaView tower — low angle — SeaView + Raymarine Quantum — low angle.

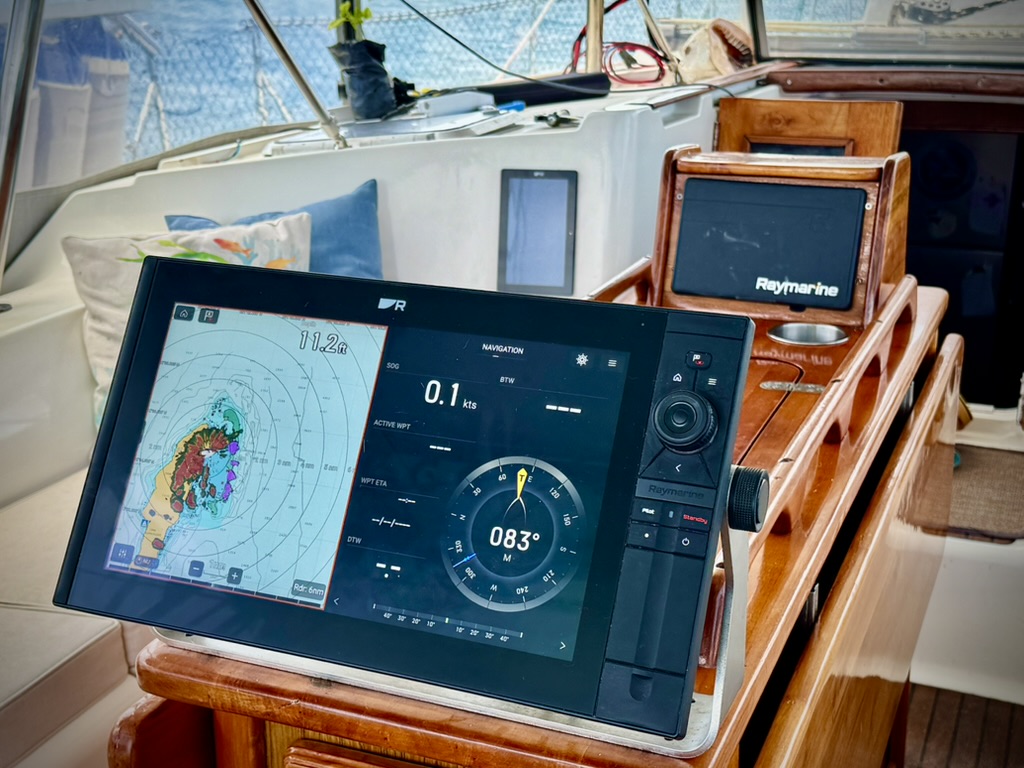

Raymarine Axiom MFD at the helm on Sophisticated Lady — Earlier helm still — Axiom + RMK-10 at the console (kept as alternate).
